Tungsten Carbide Button ST58 Top Hammer Drilling Tools

Brand Name : Litian Heavy Industry

Model Number : ST58

Certification : ISO9001:2015

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, D/P, L/C, Western Union, MoneyGram

Supply Ability : According to order quantity

Delivery Time : 3-30 days

Packaging Details : Plywooden case or packed in bundle

Thread : ST58

Material : Structural Alloy Steel

Button Material : Tugestun Carbide

Application : Tunnelling , Mining , Quarrying, Construction

Useage : Long Hole Drilling, Production drilling

Custom Design : Thread, Diameter, Length Can Be Customized

Contact Now

ST58 Thread Top Hammer Rock Tube Drilling Tools

Product Parameter
Drill Bit (ST58) Diameter Buttons (mm) Flushing hole Gauge buttons angel° Button Shape Weight (kg)

Model No.
mm inch Front Gauge Front Side

Tungsten Carbide Button ST58 Top Hammer Drilling Tools

Button bit, Regular skirt, ST58

 89 3 1/2" 5 8 4 – 35° Spherical 3.6 LT89QY58-ST58
89 3 1/2" 5 8 2 – 35° Spherical 3.8 LT89QY58.2-ST58
102 4" 6 8 4 – 35° Ballistic 5.4 LT102QJ68-ST58
102 4" 6 8 2 – 35° Ballistic 5.5 LT102QJ68.2-ST58
Drill Rod (ST58) Length Diameter Weight(kg) Model No.
mm feet/inch mm inch

Drill tube, Round 76, ST58–ST58

 1525 5' 76 3" 33 ST58-D76-1525
1830 6' 76 3" 41 ST58-D76-1830
　
SHANK ADAPTER
ATLAS COPCO Rock Drill Thread Length Diameter Weight Flushing pipe
(mm)		 Spline QTY Model No.

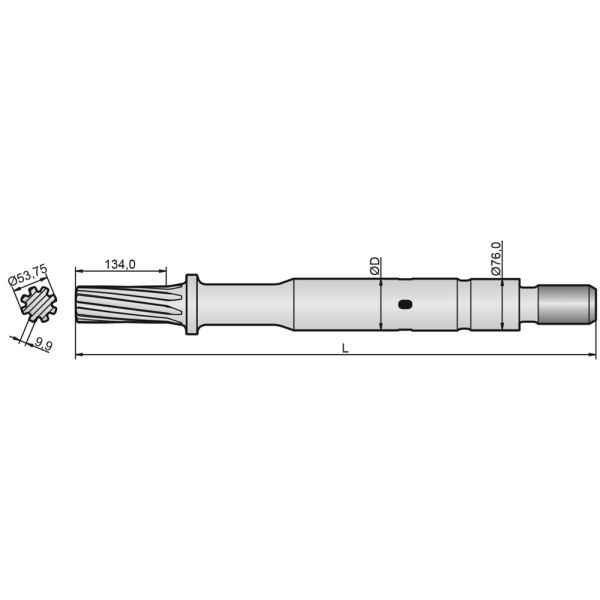

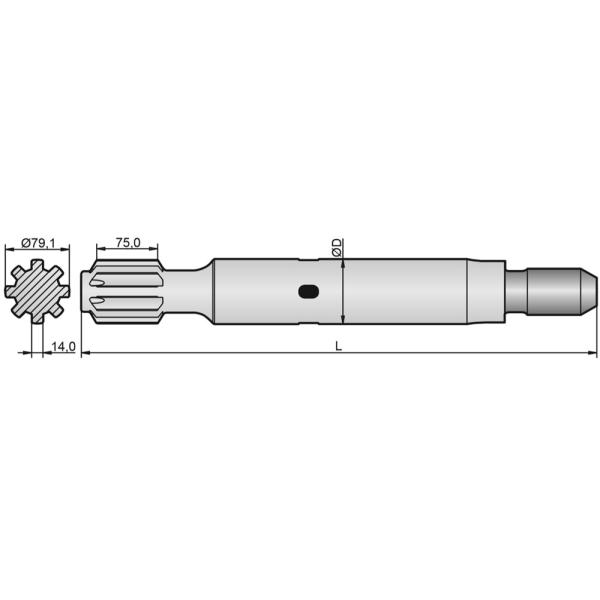

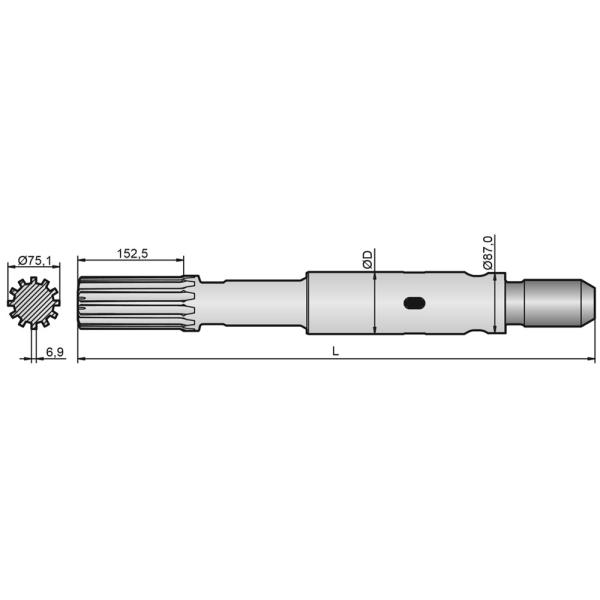

Structure Diagram mm inch mm inch
Tungsten Carbide Button ST58 Top Hammer Drilling Tools COP 2550UX ST58 770 30.31 77 3 1/32" 17.5 _ 8 ST58*8D77-770
Tungsten Carbide Button ST58 Top Hammer Drilling Tools COP 3060MUX ST58 745 29.33 90 3 35/64" 23.7 _ 12 ST58*12D90-745
Tungsten Carbide Button ST58 Top Hammer Drilling Tools COP 4050EX ST58 835 32.87 70 2 3/4" 21.8 _ 8 ST58*8D70-835
Tungsten Carbide Button ST58 Top Hammer Drilling Tools COP 4050EX ST68 835 32.87 70 2 3/4" 21.7 _ 12 ST68*12D70-835
Tungsten Carbide Button ST58 Top Hammer Drilling Tools COP 4050MUX ST58 835 32.87 90 3 11/20" 26.5 _ 8 ST58*8D90-835
SAND VIK Rock Drill Thread Length Diameter Weight Flushing pipe
(mm)		 Spline QTY Model No.

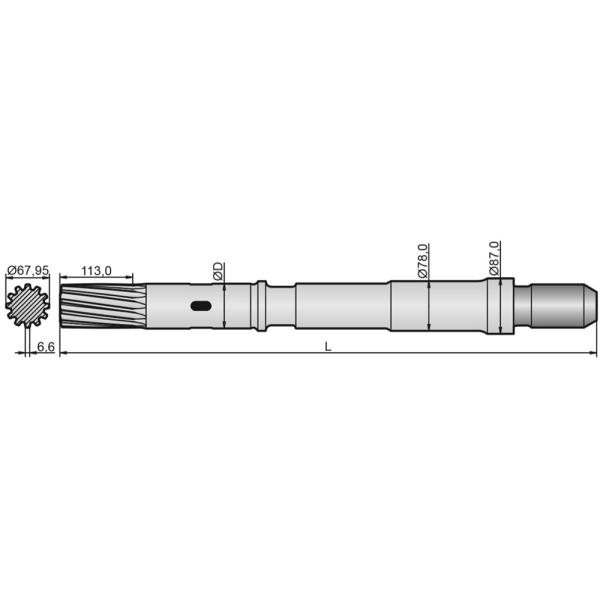

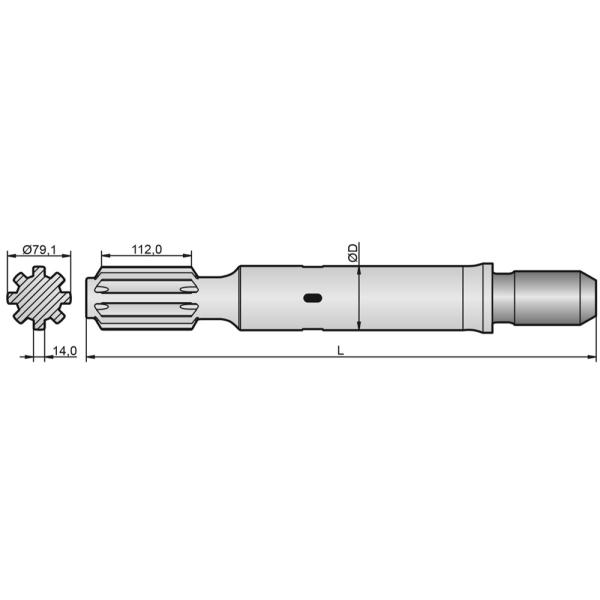

Structure Diagram mm inch mm inch
Tungsten Carbide Button ST58 Top Hammer Drilling Tools HL 1000 ST58 635 25 80 3 5/32" 18.4 _ 8 ST58*8D80-635

Tungsten Carbide Button ST58 Top Hammer Drilling Tools		 HL 1500 ST58 635 25 80 3 5/32" 18.1 _ 8 ST58*8D80-635
