Plug Hole Integral Steels Top Hammer Drill Rods

Name: Plug Hole Integral Steels Top Hammer Drill Rods
Brand: Litian Heavy Industry
Price: 1 USD

Wholesale Plug Hole Integral Steels Top Hammer Drill Rods from china suppliers

Brand Name : Litian Heavy Industry

Model Number : Top Hammer Drill Rod

Certification : ISO9001:2015

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, D/P, L/C, Western Union, MoneyGram

Supply Ability : According to order quantity

Delivery Time : 3-30 days

Packaging Details : Plywooden case or packed in bundle

Shank : 22×108mm

Material : Structural Alloy Steel

Body Type : Hexagonal Type

Application : Quarrying

Length : 260mm~4600mm

Custom Design : Thread, Diameter, Length Can Be Customized

Contact Now

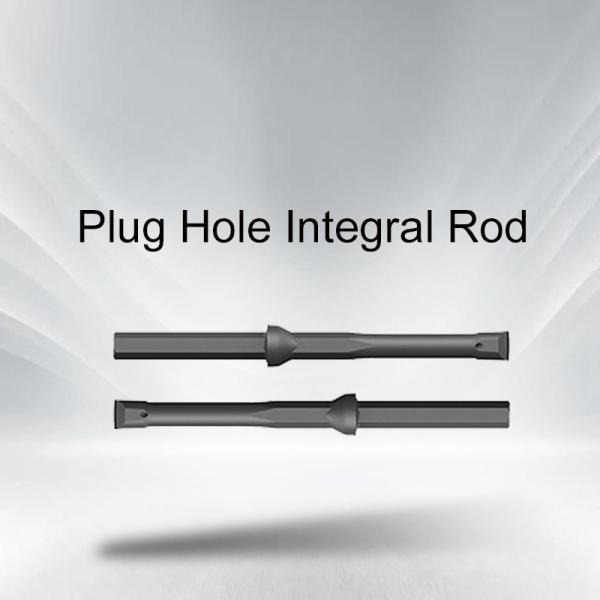

Plug Hole Integral Steels Drill Rod For Quarrying

Plug hole integral steel is the integration of drill bits and drill rods, which can be directly connected to the rock drill without the need for additional shank adapter and coupling sleeve. It is widely used in small hole operations in the quarrying industry.

Product Parameters

Plug hole integral steels	Length		Diameter		Weight(kg)	Model No.
Plug hole integral steels	mm	feet/inch	mm	inch	Weight(kg)	Model No.
Plug hole integral rod, Hex 22, Shank 22 × 108mm	260	10 15/64"	20	25/32"	1.12	H22-H20-260
	310	12 1/5"	20	25/32"	1.27	H22-H20-310
	360	14 7/40"	22	7/8"	1.42	H22-H22-360
	410	16 1/7"	22	7/8"	1.57	H22-H22-410
	460	18 11/100"	22	7/8"	1.72	H22-H22-460
